SMD LEDs vs. Standard Solar Bulbs: Efficiency and Brightness in Post Lighting
SMD LEDs produce more usable light per unit of stored battery power than the older single-emitter bulbs still found in cheap solar lights, and they spread that light over a wider area because several small emitters replace one point source. That is why the Solar Post Cap Lights use 8 warm white SMD LEDs per cap to reach 15 lumens with a 360 degree viewing angle, which is about three times the output of a general solar garden light. Understanding the difference explains why two solar lights with similar-looking panels and batteries can perform nothing alike.
What SMD actually means
SMD stands for surface-mounted device. It describes how the LED chip is packaged and attached: the light-emitting die sits in a small flat housing that is soldered directly onto the surface of a circuit board, with no wire legs poking through it.
The older style is the through-hole or DIP LED, the familiar little dome with two metal legs, which is inserted into holes in the board and soldered from behind. Both are LEDs. The packaging is what differs, and packaging turns out to matter a great deal for a light that has to run all night on a single small battery.
An SMD package sits flat against the board, so the board itself carries heat away from the die. A domed through-hole LED has almost no thermal path except its legs. Heat is the enemy of LED efficiency, because a hotter die converts less of the electricity it receives into light and more of it into further heat. Better heat handling means more light for the same current draw.
Why efficiency decides how a solar light performs
A mains-powered fixture can afford to waste energy. A solar post cap light cannot. It has a fixed daily energy budget: whatever its panel gathered during the day and stored in the included 1000mAh Ni-MH AA rechargeable battery. Nothing tops that up after sunset.
That budget makes efficiency the whole game. Every milliamp an inefficient emitter wastes as heat is a milliamp unavailable for running the light later in the night. Two lights with identical panels and identical batteries will differ substantially in both brightness and runtime purely on the efficiency of the emitters.
This is why comparing solar lights by battery capacity alone is misleading. Capacity tells you how much energy is stored. Emitter efficiency tells you how far that energy goes. A well-matched pairing of panel, battery, and efficient SMD emitters is what produces steady output through the evening rather than a bright first hour followed by a long dim fade.
SMD versus older emitter types, side by side
| Factor | SMD LEDs | Through-hole (DIP) LEDs | Miniature incandescent | |---|---|---|---| | Light per unit of power | Highest of the three | Noticeably lower | Very low; most energy becomes heat | | Heat handling | Board acts as a heat path | Minimal, via the legs | Runs hot by design | | Beam shape | Wide and diffuse | Narrow, forward-throwing cone | Wide but uneven | | Multiple emitters practical | Yes, several fit in a small cap | Bulky at higher counts | No | | Expected service life | Very long | Long | Short; filament fails | | Suits solar power | Well suited | Workable but wasteful | Unsuitable |
The practical takeaway is in the beam shape row as much as the efficiency row. A single forward-throwing emitter puts a bright spot in one direction and leaves the rest of the cap dark. Eight smaller emitters distributed inside the housing produce the even, all-around glow that a post cap needs, because a post is looked at from every side.
Why eight emitters instead of one bright one
Distributing light output across several emitters solves three problems at once.
- Coverage. A post cap sits at the top of a boundary and is seen from the yard, the house, the street, and the neighbor's side. Multiple emitters give the 360 degree viewing angle that a single directional LED cannot.
- Glare. One very bright point source at eye level is uncomfortable to look at. The same total output spread across eight emitters reads as a glow rather than a glare, which is what you want on a deck rail where people sit.
- Thermal load. Driving one emitter hard produces a hot spot. Sharing the same output across several emitters keeps each one cooler and closer to its efficient operating range.
How to compare two solar post lights honestly
Where emitter quality shows up in daily use

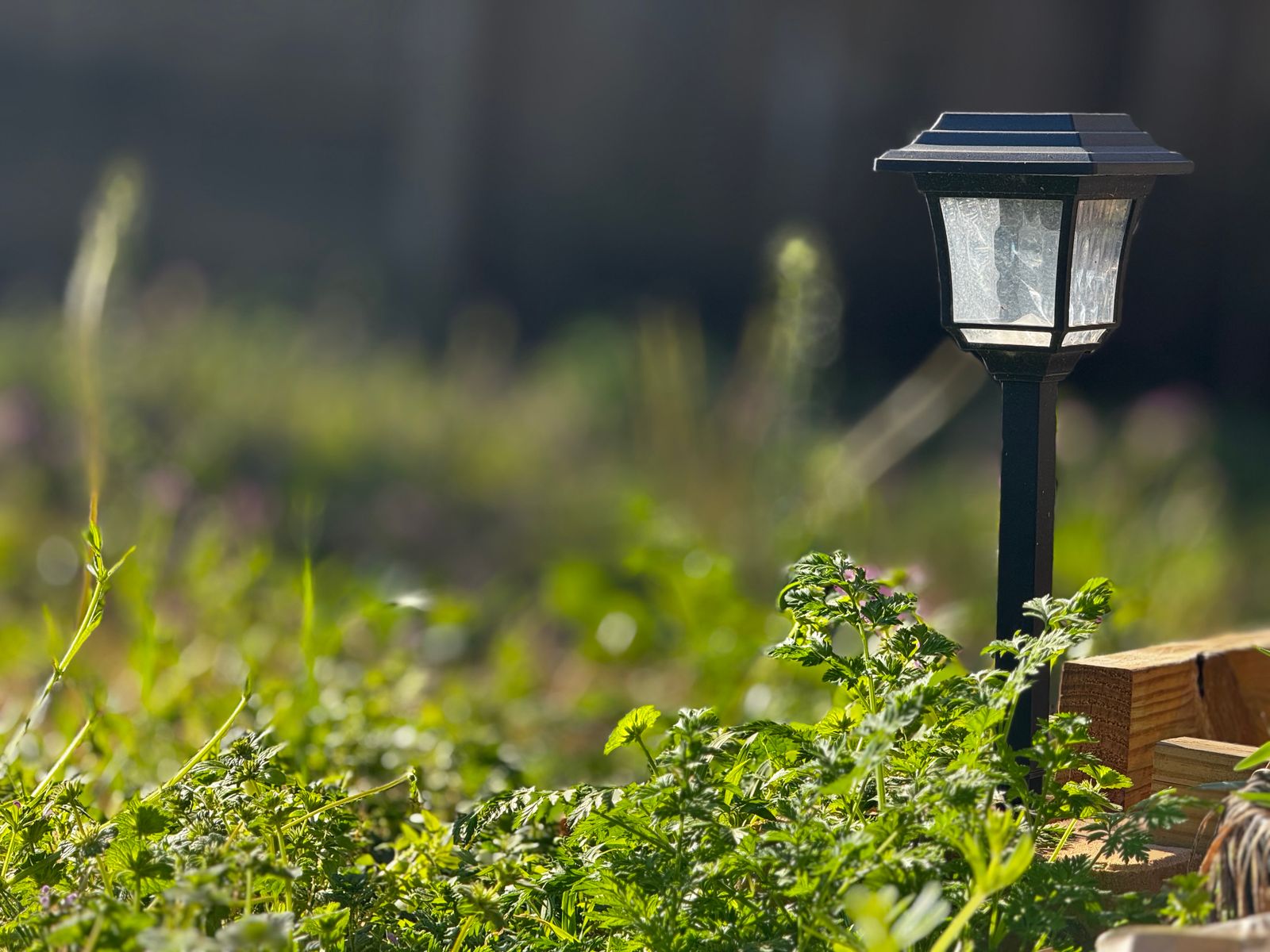

Photo by pierre matile on Pexels
The difference between efficient and inefficient emitters is most visible in two places, and neither is the first ten minutes after dusk.
The first is the second half of the night. Inefficient lights front-load their energy, burning through the battery early and dropping off sharply. Efficient emitters let the same stored charge sustain a steadier level for longer.
The second is short winter days. When the panel gets fewer usable hours of direct sun, the battery starts the evening with less energy than it would in July. Lights built around efficient emitters degrade gracefully under that constraint. Lights built around wasteful ones simply stop earlier. That relationship between charge time and evening runtime is the practical reason emitter efficiency belongs in a buying decision at all, and it is discussed further in our overview of what makes the brightest solar post caps.
Does warm white cost you brightness?
Warm white and cool white are made differently. A white LED is a blue die with a phosphor coating that converts some of that blue light into longer wavelengths, and warm white uses more phosphor conversion than cool white. More conversion means slightly more loss, so at equal power a cool white emitter can measure a little higher on a meter.
That measurement advantage rarely matters outdoors. Warm white renders wood, stone, and planting in colors that look natural at night, while cool white can make the same materials look gray and clinical. For a decorative boundary light where the goal is defining a space rather than illuminating a work area, the warmer tone is generally the better trade. Our article on choosing warm white post cap lights works through that comparison in more depth.
Frequently asked questions
Are more LEDs always brighter? No. Total light output depends on how hard each emitter is driven and how efficient it is, not on the count. Eight efficient emitters can easily outperform a larger number of weak ones, which is why the lumen figure is the number to compare.
Is 15 lumens enough for a fence or deck? For marking boundaries, edges, and steps, yes. Fifteen lumens per cap over a run of posts defines a space clearly after dark. It is not intended as task or security floodlighting, which needs output measured in hundreds of lumens.
Do SMD LEDs burn out? They dim very slowly over a long service life rather than failing suddenly like a filament bulb. On a solar light, the rechargeable battery almost always reaches the end of its useful life well before the emitters do.
Will an efficient LED make the lights run all night? Runtime depends on how much charge the panel gathered that day, so it varies with season and shading. Efficient emitters extend whatever charge is available; they do not create energy that was never collected.
What to do with this
When comparing solar post cap lights, ignore the LED count on the front of the box and look for three things together: a stated lumen output, the emitter type, and a realistic charge time. Those three, read as a set, tell you far more about how a light will behave in October than any single headline number. Then check your post measurements so the caps you choose actually fit the posts you own.
